Web console

Open the console with livemore open, or go to http://127.0.0.1:8850. It must be served by the running Aegle service, never opened as a file.

Pages

Page	Path	Purpose
Atlas	`/`	Whole-person reference anatomy, the multiscale path (body, organ, tissue, cell, ion channel, gene), biological time, interventions and baseline-versus-treated response
Twins	`/twins`	Governed subject lifecycle: admit, activate and bind a virtual or physical patch
Cohorts	`/cohorts`	Create and freeze reproducible populations
Cendos Lab	`/cendos`	Prepare, run, recall and re-run protocols, and export CSV or notebooks
Biology	`/biology`	Run-bound inspection of individual responses, organs, cells and molecular context
LIFE Patch	`/patch`	The numerical-device workflow, virtual-patch admission and the biomarker stream
Research	`/research`	Freeze predictions, admit measurements and compare them. Also resilience protocols and learning proposals
Knowledge	`/adapters`	Scientific adapters and the governed source catalog
API	`/docs`	Interactive OpenAPI documentation for Aegle

Screenshots

All of these were captured from a clean install of release stable 6588707. Every result shown is model output; the Atlas header labels it MODELED · UNQUALIFIED.

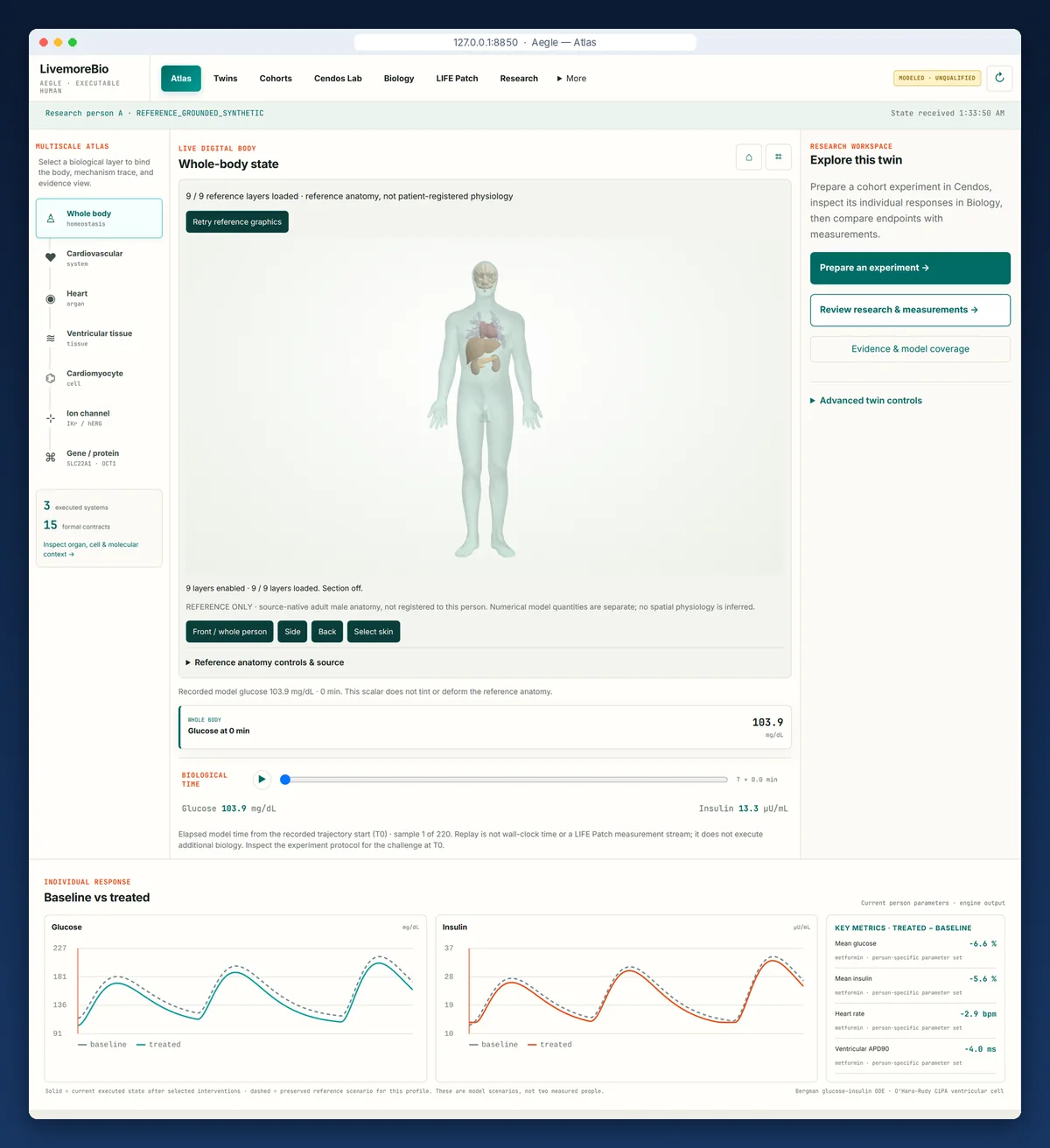

The Aegle console on a fresh install: a whole-body reference anatomy for an admitted research twin, the multiscale atlas from whole body to gene, biological-time replay, and a metformin intervention showing baseline versus treated glucose and insulin traces — Atlas: an admitted research twin and a metformin intervention run through that individual's reduced glucose–insulin model. Reference anatomy: BodyParts3D, © DBCLS, CC BY-SA 2.1 JP.

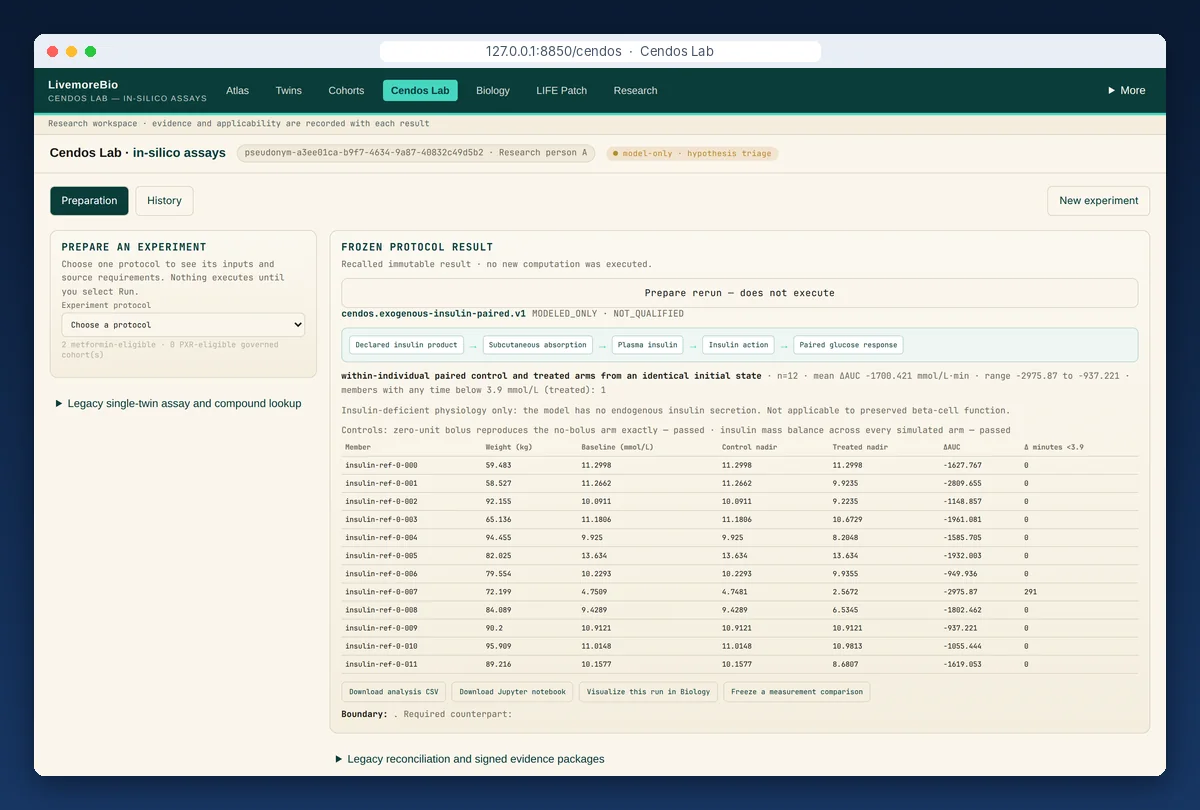

Cendos Lab showing a frozen exogenous-insulin protocol result for twelve research members with paired control and treated arms, controls passed, and CSV and notebook export — Cendos Lab: paired insulin arms for 12 research members, with controls passed and CSV and notebook export.

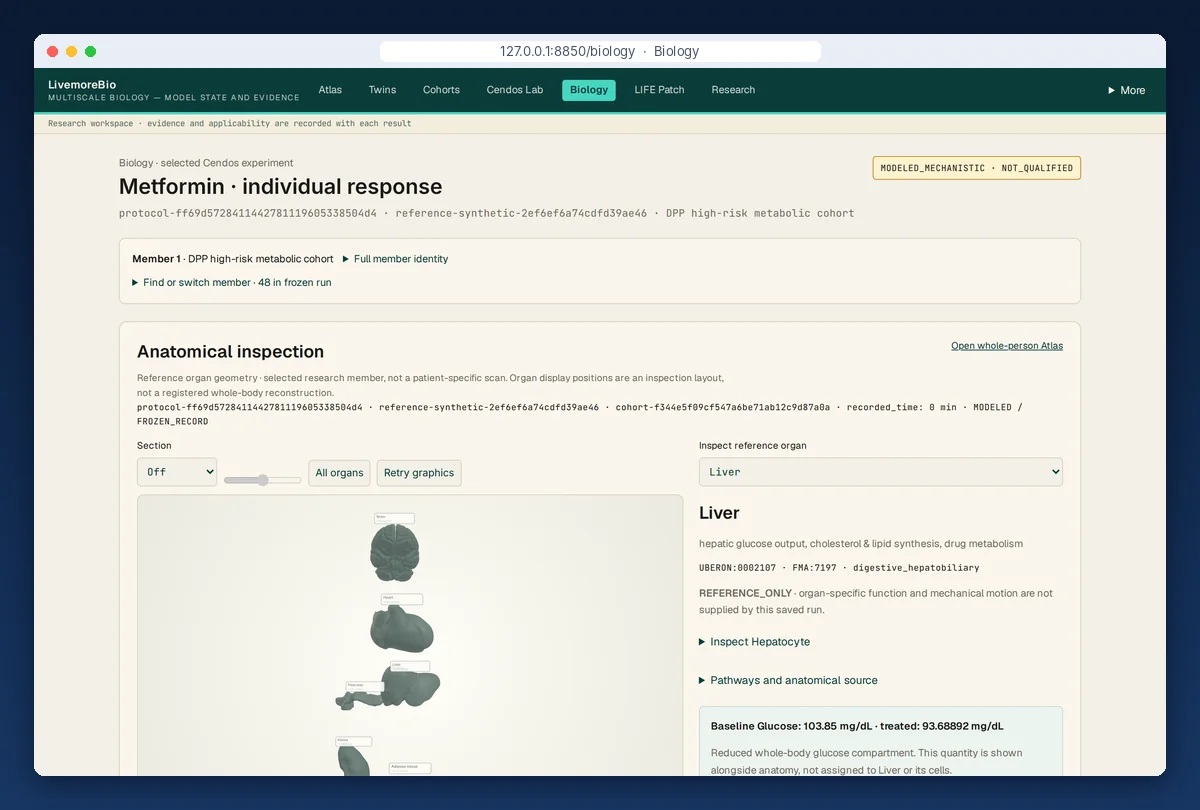

Biology view of one cohort member's metformin response: reference organ geometry with the liver selected, its ontology identifiers, and baseline versus treated glucose from the frozen run — Biology: one member's metformin response, tied to reference anatomy and the frozen run. Reference anatomy: BodyParts3D, © DBCLS, CC BY-SA 2.1 JP.

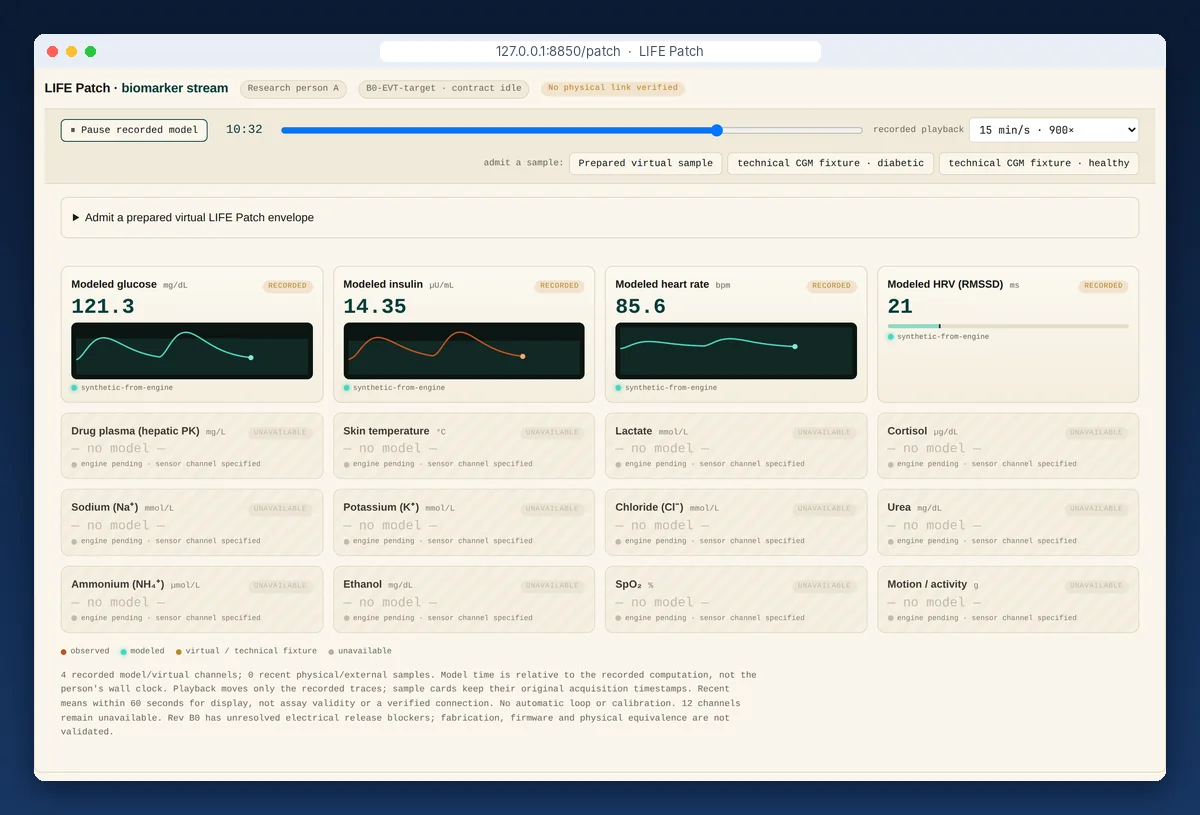

LIFE Patch biomarker stream: modeled glucose, insulin, heart rate and HRV channels replaying a recorded model, and twelve sensor channels marked unavailable, alongside a No physical link verified badge — LIFE Patch: four modeled channels. The other twelve show as unavailable instead of being faked.

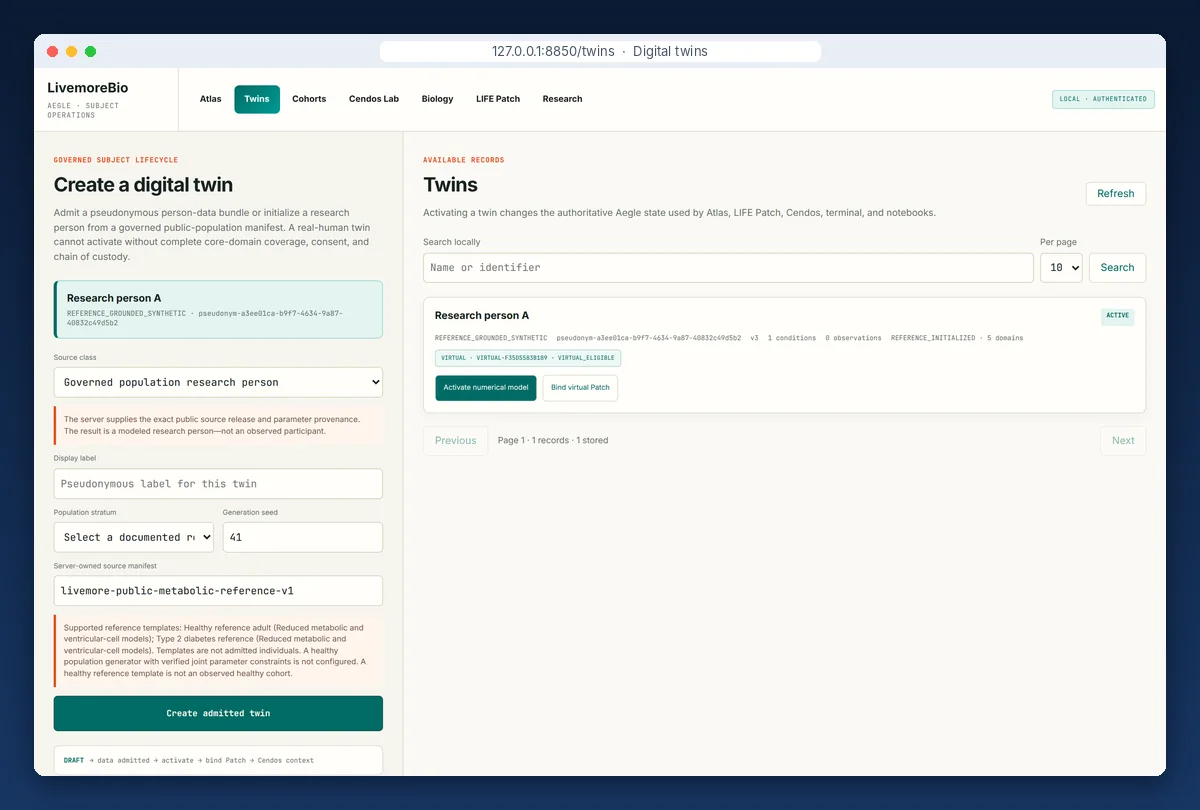

Digital Twins page: governed subject lifecycle for creating a research twin from a public-population manifest, and an active twin bound to a virtual LIFE Patch — Digital twins: governed admission, activation and virtual-patch binding.
